Proxy on Mobitru devices

You can track requests and responses of an app/site opened on Mobitru devices with the help of a Proxy tool.

Pre-condition: Do I need to turn on VPN on the Mobitru devices?

If you are working via our CMD application, we advise turning on a required VPN on your PC (if necessary for your application/site). In this case, you do not need to install or connect a VPN on the device. This should be done before the Steps to configure the work of a Proxy tool and Mobitru device.

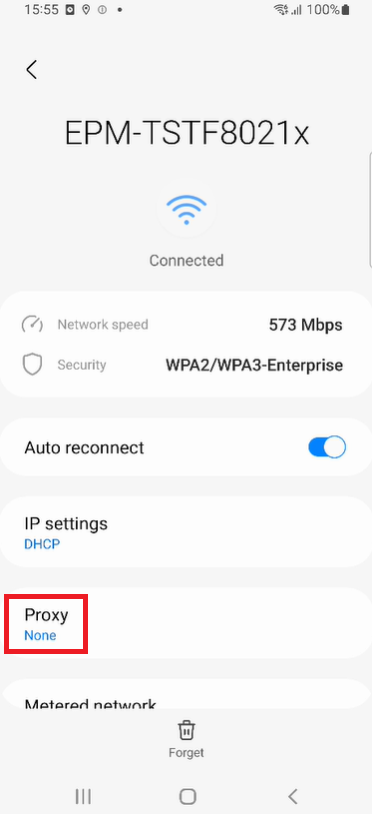

Important: Do I need to configure a Proxy in the device’s Wi-Fi settings?

No, you do not. Leave None in Settings -> Advanced -> Proxy. The setting is so by default. You do not need to change anything on the device when you start a new session.

Proxy settings

Steps to configure the work of a Proxy tool and Mobitru device

  1. Contact support@mobitru.com to receive the CMD application.
  2. Generate the Access key.
  3. Open a Proxy tool.
  4. Check the port in the settings of the tool.
Instruction on how to check port in Charles
  1. Start the session on a Mobitru device.
  2. Copy the Serial number/UDID.
  3. Open the folder with the CMD app in the Terminal/CMD on your PC.
CLI opening on Windows
  1. Run the app with the following data:

Windows: Name_of_the_CMD_app.exe client -d Serial/UDID -k ACCESS_KEY -p http://127.0.0.1:8888

macOS/Linux: ./Name_of_the_CMD_app client -d Serial/UDID -k ACCESS_KEY -p http://127.0.0.1:8888

8888 is an example port. If your Proxy tool runs another port, you can change it to the appropriate one.

  1. Install an app /Open a website on the device.
  2. Check the tracking in the Proxy tool.

Logs of a problem

If you have faced a problem during the feature use, add the -v parameter for running the application. Collect the logs and send them to support@mobitru.com.

Windows: Name_of_the_CMD_app.exe client -d Serial/UDID -k ACCESS_KEY -p http://127.0.0.1:8888 -v

macOS/Linux: ./Name_of_the_CMD_app client -d Serial/UDID -k ACCESS_KEY -p http://127.0.0.1:8888 -v
